Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

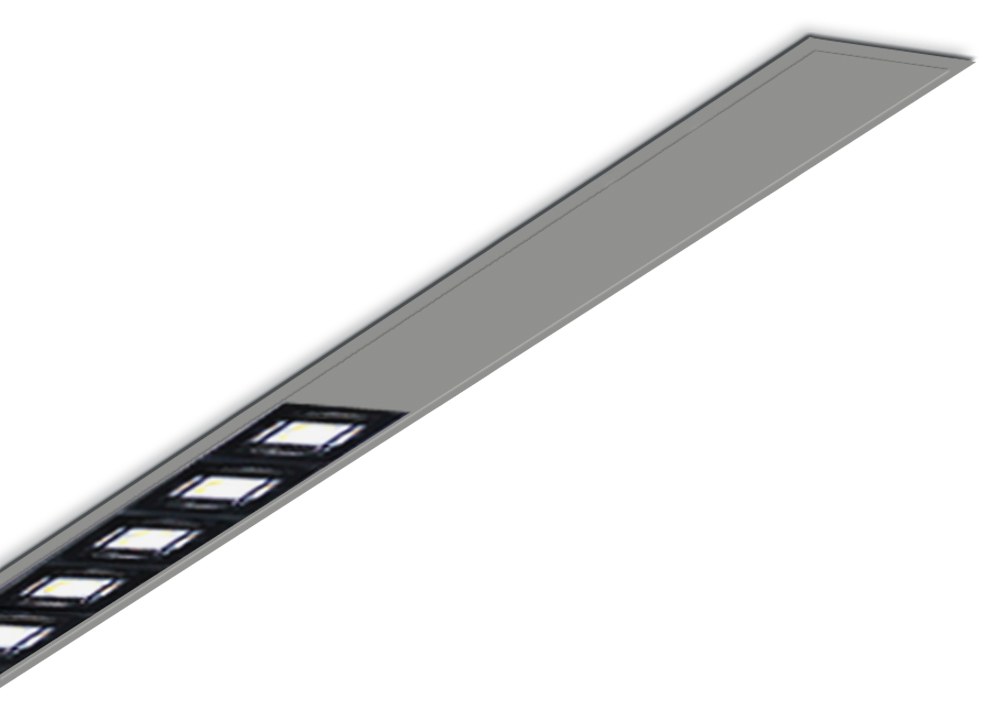

Direct distribution. With 2 lens modules with 50° or 80° grid, centered.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
L 610-1730 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 610 mm
17442.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 890 mm
17443.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 1170 mm
17444.
71
2710 lm
2910 lm
3070 lm
21 W
72
3980 lm
4270 lm
4510 lm
30 W
73
4600 lm
4930 lm
5200 lm
35 W
Länge 1450 mm
17445.
71
3390 lm
3640 lm
3840 lm
25 W
72
4980 lm
5340 lm
5630 lm
37 W
73
5750 lm
6160 lm
6500 lm
43 W
Länge 1730 mm
17446.
71
4070 lm
4370 lm
4600 lm
29 W
72
5970 lm
6410 lm
6760 lm
43 W
73
6900 lm
7400 lm
7810 lm
51 W
| ► | Example Article-Number-Key |
