Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

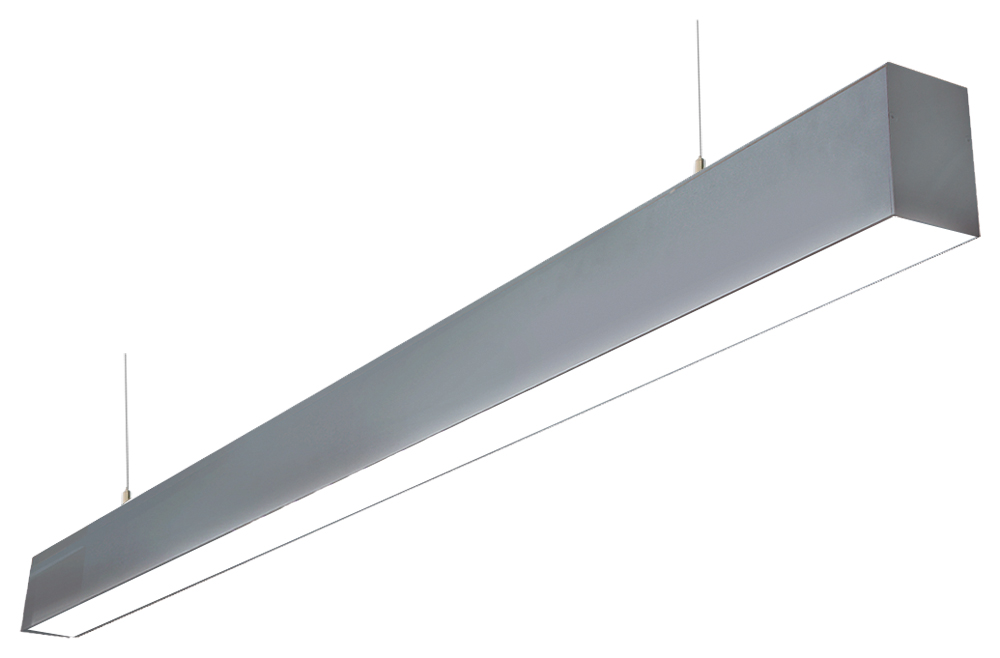

Direct/indirect distribution. Acrylic cover in satin.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL. Suspended with quick clamping system, height adjustable without tools.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 76 mm
B 38 mm
L 590-1710 mm
Article
LED Type
3000 K
4000 K
Power
Länge 590 mm
92512.
13
2080 lm
2160 lm
18 W
14
2910 lm
3020 lm
24 W
15
4130 lm
4290 lm
34 W
Länge 870 mm
92513.
13
3120 lm
3240 lm
26 W
14
4370 lm
4540 lm
35 W
15
6200 lm
6440 lm
49 W
Länge 1150 mm
92514.
13
4160 lm
4320 lm
33 W
14
5830 lm
6050 lm
45 W
15
8270 lm
8590 lm
65 W
Länge 1430 mm
92515.
13
5210 lm
5400 lm
40 W
14
7290 lm
7570 lm
56 W
15
10340 lm
10740 lm
80 W
Länge 1710 mm
92516.
13
6250 lm
6480 lm
48 W
14
8750 lm
9080 lm
66 W
15
12400 lm
12890 lm
95 W
The midiRail Wallwasher
LED Wallwasher
The first impression when entering a room is determined by its walls - one of the most difficult tasks in lighting technology is the uniform illumination of walls. With our newly developed midiRail wallwasher, we have created a powerful tool that masters these tasks excellently. Equipped with LEDs in SMD technology, with an excellent service life (L80/B10).
Lighting Technology
Regardless of its external shape, this wallwasher delivers a highly asymmetrical light distribution thanks to the reflector technology developed specifically for this purpose.
| ► | Example Article-Number-Key |
